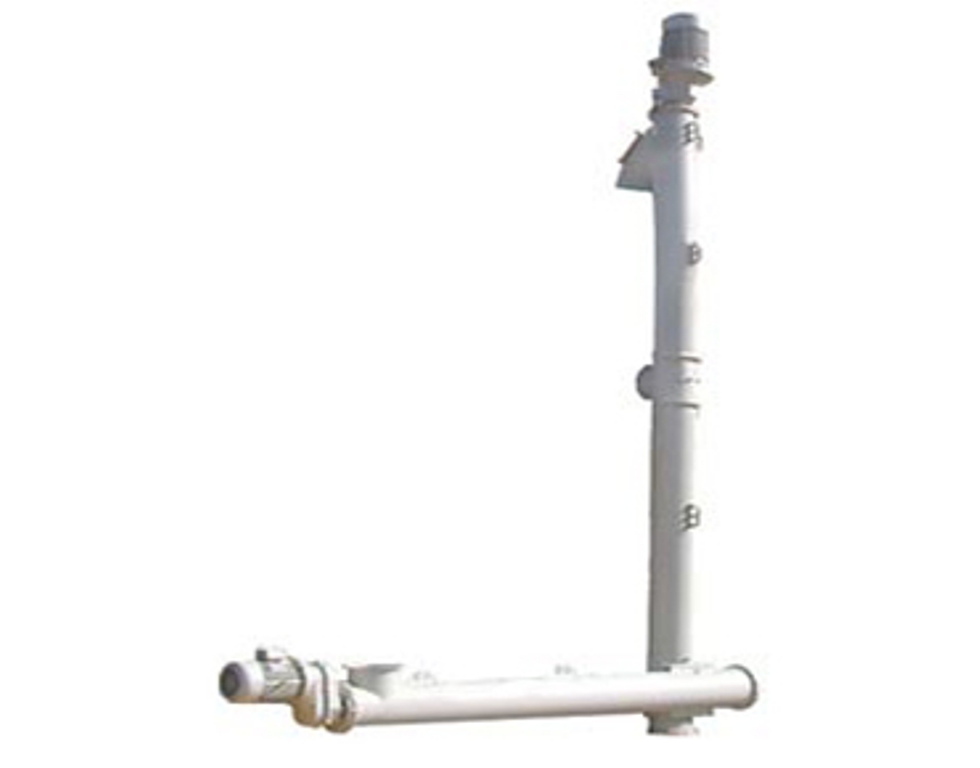

垂直螺旋輸送機產品概述

垂直螺旋輸送機旋轉軸上焊的螺旋葉片，葉片的面型根據輸送垂直螺旋輸送機物料的不同有實體面型、帶式面型、葉片面型等型式。
垂直螺旋輸送機的螺旋軸在物料運動方向的終端有止推軸承以隨物料給螺旋的軸向反力，在機長較長時，應加中間吊掛軸承。
Product overview
Vertical screw conveyor on the axis of rotation welding spiral blade, blade surface type according to different transport of vertical screw conveyor materials have a solid surface, belt surface, such as blade surface type.
Vertical screw conveyor screw axis of the terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, the captain is longer, should add hanging bearing in the middle.

垂直螺旋輸送機的分類

主要有LSY、LS、GX、WLS、LC型系列螺旋輸送機;MS、MC、MZ、MSF、MSD型系列埋刮板輸送機，F(xiàn)U型系列鏈式輸送機；TD、TH、NE、型等系列；DSZ、YSJ型粉塵加濕攪拌機系列；HXF型星形卸灰閥（XF物料旋閥）、DLSF系列電動雙層聯鎖閥、ZF型閘板閥等閥門系列；卸船設備以及污水污泥處理設備;不銹鋼螺旋輸送機等。
因用途、場合的不同，螺旋輸送機械又有許多改型產品，如用于垂直輸送的LC、LS-Y 型：高爐系統，專門用于消化石灰的XP 型及單、雙管螺旋給料機等，還有無軸螺旋輸送機、雙螺旋輸送機、螺旋式輸送機等等。
Classfication
Mainly has the newly-modified LSY, LS type, GX, WLS, LC series screw conveyor;MS, MC, MZ, MSF, MSD type series buried scraper conveyor, FU chain conveyor type series;TD type, TH, NE, etc;DSZ, YSJ humidifying dust mixer series;Type HXF star discharging valve material spin valve (XF), DLSF series electric double layer interlock valve, ZF type gate valve, valve series;Discharging equipment and sewage sludge treatment equipment;Stainless steel screw conveyor and so on.
For use, the different occasions, screw conveying machinery and there are many varied products, such as for vertical conveying of LC, LS - Y type: the blast furnace system, specifically for the digestion of lime XP type, single and double pipe screw feeder, and shaftless screw conveyor, double spiral conveyor, screw conveyor and so on.

垂直螺旋輸送機的特點

1.承載能力大、安全可靠。
2.適應性強、安裝維修方便、壽命長。
3.整機體積小、轉速高、確?？焖倬鶆蜉斔?。
4.出料端設有清掃裝置，整機噪聲低、適應性強，進出料口位置布置靈活。
5.密封性好、外殼采用無縫鋼管制作，端部采用法蘭互相連接成一體，剛性好。
Characteristic
1. The large bearing capacity, safe and reliable.
2. Strong adaptability, easy installation and maintenance, long service life.
3. The machine is small in size, high speed, ensure rapid delivery uniformity.
4. The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5. Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
垂直螺旋輸送機的工作原理

是利用旋轉的螺旋將被輸送的物料沿固定的機殼內推移而進行輸送工作，頭部及尾部軸承移至殼體外，吊軸承采用滑動軸承設有防塵密封裝置，軸瓦一般采用粉末冶金，輸送水泥采用毛氈軸瓦，吊軸和螺旋軸采用滑塊連接。
Working principle
Its the use of rotating screw materials will be transported along a fixed conveying work inside the casing goes on, the head and tail bearing moved to the outside shell, suspension bearing adopts the sliding bearing the dustproof sealing device, commonly used bearing shell powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block.

垂直螺旋輸送機的安裝

        垂直式螺旋輸送器上部有軸承支承,大多數采用單列圓錐滾子軸承兩個,安裝此軸承時,不可裝反,以免出現問題。
　　單列圓錐滾子軸承與向心推力球軸承相似,但承載能力更大,內外圈可分離,間隙容易調整。常用于斜齒輪軸、蝸輪減速器軸、機床主軸等。圓錐滾子軸承主要適用于承受以徑向載荷為主的徑向和軸向聯合載荷，而大錐角圓錐滾子軸承可以用于承受軸向載荷為主的徑軸向聯合載荷。此種軸承為分離型軸承,其內圈(含圓錐滾子和保持架)和外圓可以分別安裝。在安裝和使用過程中可以調整軸承的徑向游隙和軸向游隙,也可以預過盈安裝.
　　單列圓錐滾子軸承3000型,此種軸承能夠限制軸或外殼一個方向的軸向位移。承受一個方向的軸向載荷。在徑向載荷作用下會產生附加軸向力,因此,一般在軸的兩個支承中,軸承的外圈和內圈的同名端面相對安裝。如單獨使用,其外加軸向力必須大于附加軸向力。
　　垂直式螺旋輸送機上部兩單列圓錐滾子軸承在安裝時,要注意,內圈在上面安裝垂直小錐面向上,在下面安裝垂直小錐面向下,兩單列錐滾子軸承相對安裝,這樣就可以支承住實體螺旋面不向下位移,保證生產的正常運轉
Installation
Vertical spiral conveyor its upper bearing, most use two single row tapered roller bearing, install the bearings, not installed backwards, in order to avoid problems.
Single row circular cone roller bearings and angular contact ball bearings are similar, but the carrying capacity of a larger, inside and outside the circle of separable, easy to adjust the clearance.Often used for helical gear shaft, worm gear reducer shaft, spindle, etc.Tapered roller bearing mainly applies to afford to mainly consisting of radial load and axial load, and the big cone Angle tapered roller bearing can be used to carry axial load is given priority to the diameter of the axial load.These bearings for separating type bearing, which circles (including tapered roller and cage) and outer circle can be installed separately.In the process of installation and use can adjust bearing radial clearance and axial clearance and preloaded mounting can be made.
Single row tapered roller bearing type 3000, these bearings can limit shaft or housing in one direction axial displacement.Carry axial load in one direction.Under the effect of radial load will produce additional axial force, therefore, generally in two supporting shaft, bearing outer ring and inner ring end face relative to the installation of the same name.If used alone, the additional axial force must be greater than the additional axial force.
Upper vertical screw conveyor two single row circular cone roller bearings in the installation, pay attention to, the inner ring in the above installed vertically upward, small cone installed vertically below small cone downward, relative to install two single row taper roller bearings, so that you can support living entity helicoid downward displacement, ensure the normal operation of production

垂直螺旋輸送機的使用和維護

垂直螺旋輸送機的工作條件較惡劣，各個軸承都處于粉塵包圍之中，導熱條件不好，因此在這樣的工作條件下合理操作、保養尤為重要，故要求如下：
　　螺旋機應無負荷起動，待起動正常后向進口投料。
　　給料時應均勻限額，給料量要合適以免使機器過載。
　　停車前，應停止給料，使機殼內物料輸送完后方可停止。
　　輸送物料內不得混入堅硬大塊，避免螺旋卡死損壞輸送機。
　　在使用中應檢查各部件的聯結禁錮件是否松動，動力是否發熱，聲音是否正常，一旦有異常，立即停車糾正。
　　調速電機起動、運行、停止?？梢匀珘浩饎右嗫山祲浩饎?，電動機起動后合上控制箱電源開關，逐漸調節速度旋鈕，增加激磁電流，離合器轉速逐漸加至需要運行轉速。停車時把調速旋紐調到零位，再停止拖動電機。
　　各加油部位應定期加油。
Usage and maintenance
Vertical screw conveyor working conditions are bad, each bearing are surrounded by dust, thermal condition is bad, so in this work under the condition of reasonable operation and maintenance is particularly important, so the requirement is as follows:
Screw machine should no-load starting, starting to import after the normal feeding.
Feeding should be uniform limit, to recycle to proper lest make machine overload.
Before parking, should stop feeding, make the conveying of rear can stop inside the casing.
No mixed with solid chunk in the conveying material and avoid the damage of spiral stuck conveyor.
Imprisoned in use of the various components should check the connection is loose, whether fever, voice is normal, once there are abnormal, stop immediately corrected.
